INTSUPERMAI 3 in 1 Busbar Processor Machine Hydraulic Punching Bending Cutting Machine Copper Busbar Processor Cutting, Punching, flating bend110V

Overview

• Brand : INTSUPERMAI
• Material : Metal
• Power Source : ac
• Product Dimensions : 5.9"W x 0.47"H
• Voltage : 110 Volts (AC)

About this item

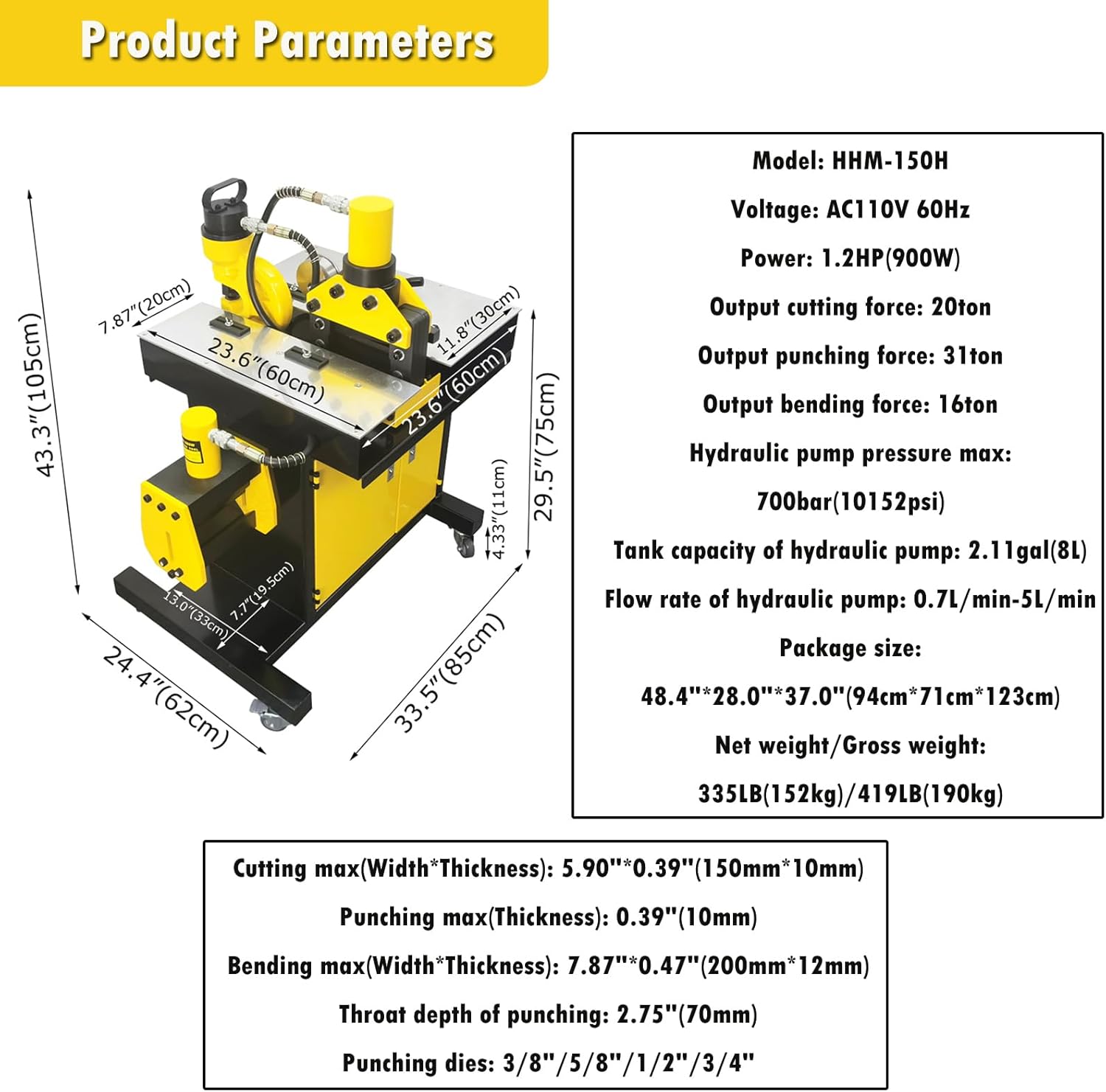

• Product Parameters:Output cutting force:20ton,Output punching force:31ton,Output bending force:16ton,Cutting max(Width*Thickness):5.90"*0.39"(150mm*10mm),Punching max(Thickness):0.39"(10mm),Bending max(Width*Thickness):7.87"*0.47"(200mm*12mm),Throat depth of punching:2.75"(70mm),Punching dies:3/8"/5/8"/1/2"/3/4"

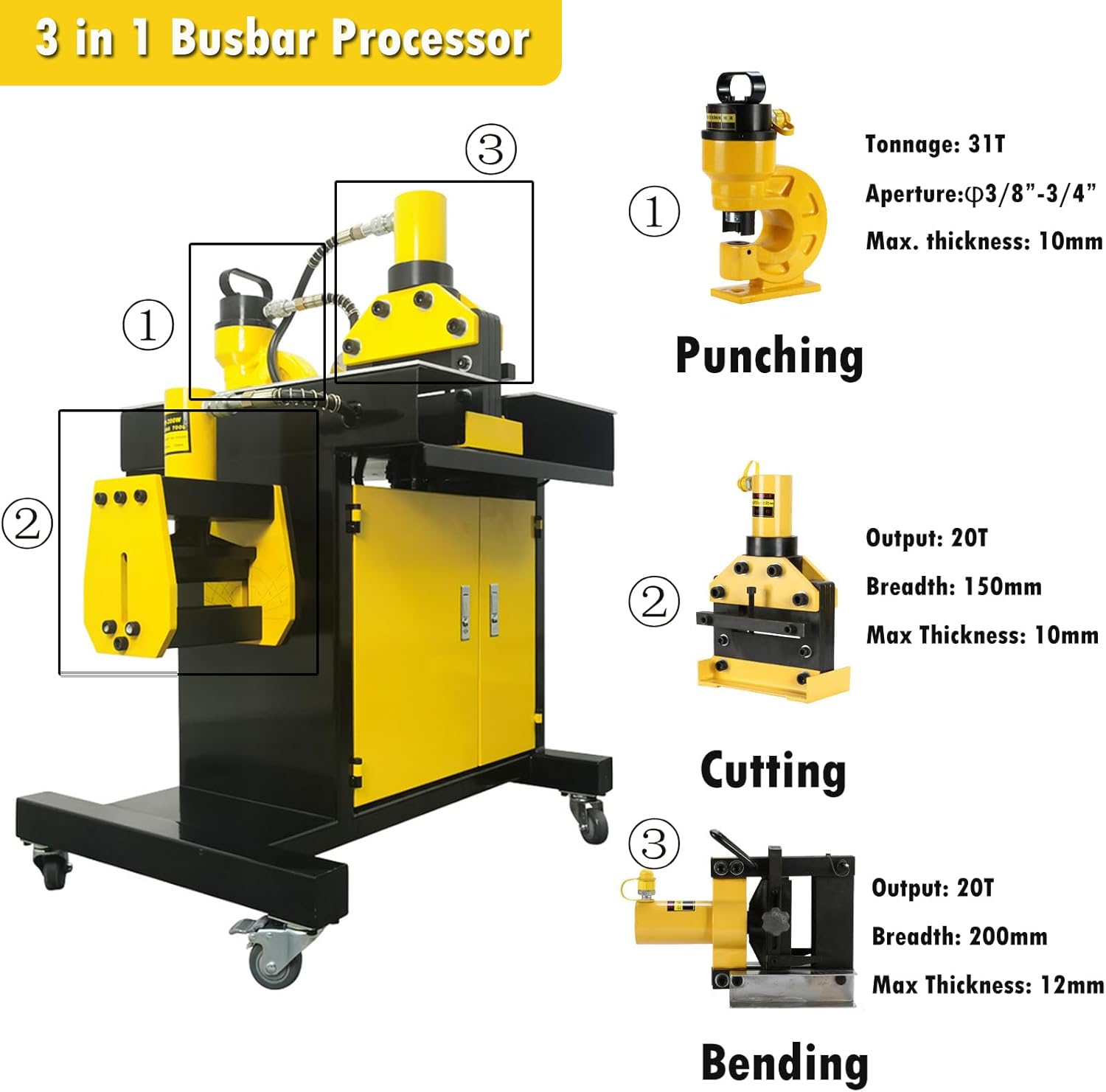

• 3 in 1 Multi-function:Puching ,cutting, bending three function in one machine.It is suitable for busbar processing.
• No burr after punching; The cutting surface is smooth without indentation and burr, one bending molding, high precision.

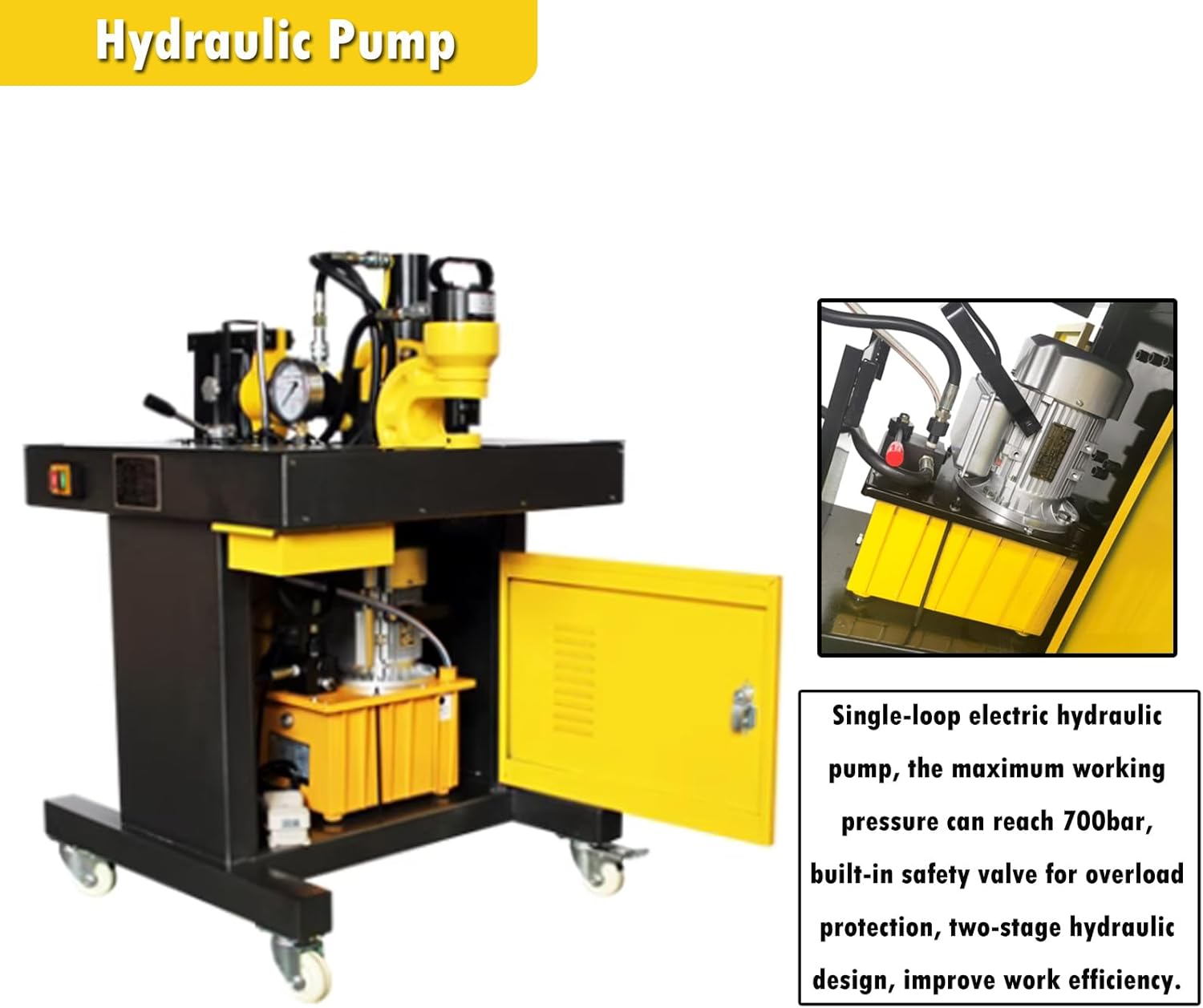

• Pure copper core motor:Pure copper core motor to ensure long-term stable operation of equipment; High quality, high sealing rubber pipeline to ensure that the loop will not leak hydraulic oil.

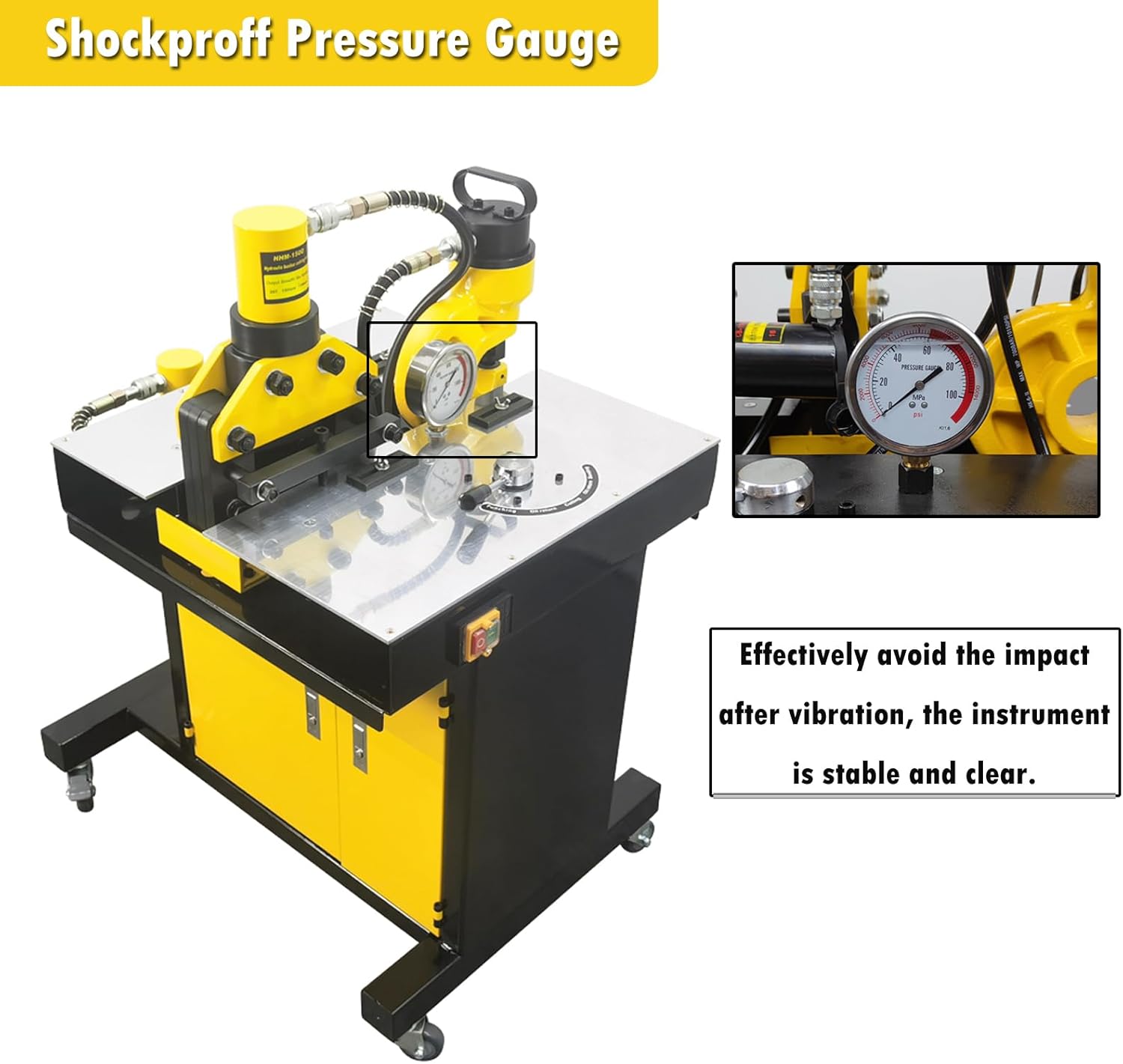

• 1000kg/cm² Oil-filled Hydraulic Gauge:The operator to perform machining operations according to the pressure index, avoiding overload damage to equipment.Effectively avoid the impact after vibration, the instrument indication is stable and clear.
